Chronic Master Cylinder Failure

Occasionally a vehicle will experience chronic failure of the primary side of the master cylinder due to fluid loss and what appears to be by-pass. As a result, a recently replaced master cylinder may be assumed to be defective and is replaced again, only to have the replacement unit fail after a short time, again due to fluid loss on the primary side.

Troubleshooting chronic master cylinder failure

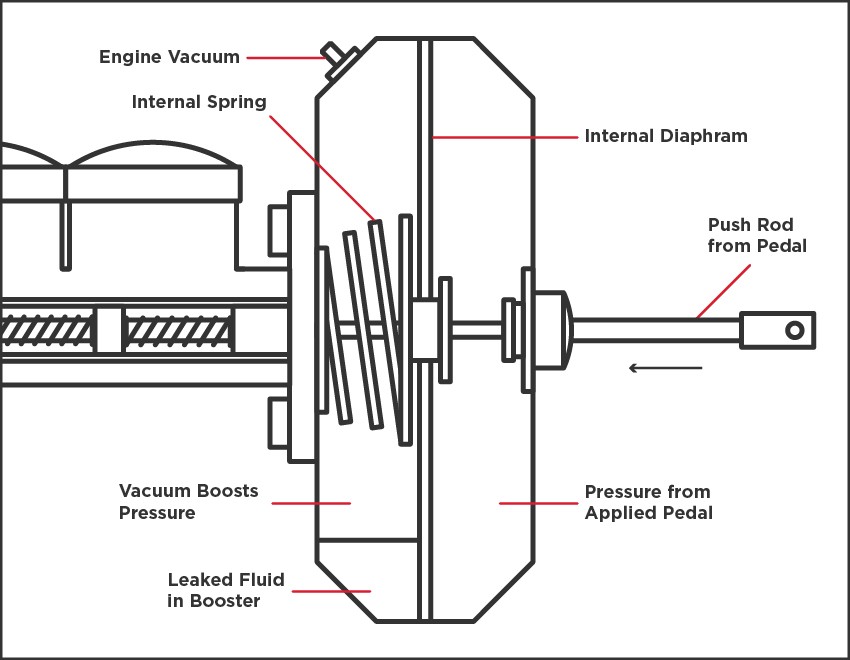

The problem may, in fact, be caused by a faulty vacuum booster. If the seal at the master cylinder side of the booster is faulty, the adjoining end of the master cylinder will be exposed to manifold vacuum. Manifold vacuum may draw fluid past the rear seal of the master cylinder and into the booster. To check for this condition, begin by connecting a vacuum gauge to the engine to measure manifold vacuum. With the engine at idle speed, note the amount of manifold vacuum present. With the engine idling, loosen the bolts at the master cylinder flange and separate the master cylinder from the booster.

Print

How to test for a faulty vacuum booster

To check for this condition, begin by connecting a vaccum gauge to the engine to measure manifold vacuum. With the engine at idle speed, note the amount of manifold vacuum present. With the engine idling, loosen the bolts at the master cylinder flange and separate the master cylinder from the booster.

Note that the brake lines fo not need to be disconnected since the master cylinder will only have to separated from the booster by approximately 1/8 inch.

Again, note the amount of vacuum present at the vacuum gauge. A drop of manifold vacuum when the master clinder is moved will indicate a faulty forward seal in the booster and booster service will be required.

The content contained in this article is for entertainment and informational purposes only and should not be used in lieu of seeking professional advice from a certified technician or mechanic. We encourage you to consult with a certified technician or mechanic if you have specific questions or concerns relating to any of the topics covered herein. Under no circumstances will we be liable for any loss or damage caused by your reliance on any content.
