DISC BRAKE TROUBLE
TRACER CHART

Do you notice your brakes grinding, brake noise or squeaking brake problemsSqueaky brakes can be an indicator of brake wear and indicate you may need a brake replacement. If you have questions about brake wear, use this handy brake pad replacement indicator to learn about worn or damaged pads.

Take a look at the Wagner Trouble Chaser Chart to help identify disc brake problems and their causes, effects and solutions.

Normal Appearance

APPEARANCE

  • Normal use
  • Recommend periodic maintenance

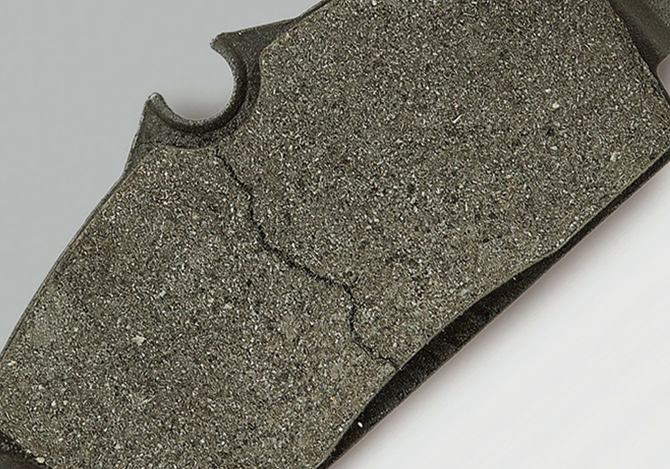

Cracked Pads

APPEARANCE

  • Small cracks in center of pad

CAUSE

  • Stress cracks caused by pads flexing
  • Pads not free to slide in caliper

EFFECT

  • Piston bends in back plate

SOLUTION

  • Lubricate caliper slides and guide pins
  • Replace pads

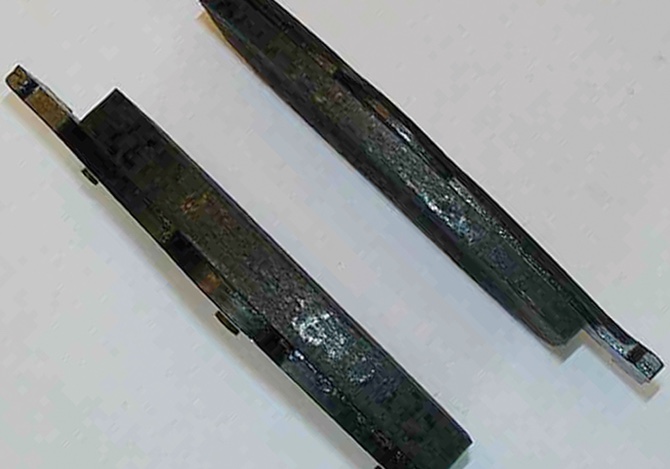

Uneven Wear Within a Set


APPEARANCE

  • Uneven wear on pad surface

CAUSE

  • Irregularly worn brake disc (wear lip)

EFFECT

  • Squeal and brake pedal pulsation
  • Premature pad wear

SOLUTION

  • Replace rotors and pads

UNEVEN WEAR



APPEARANCE

  • Uneven wear on pad surface

CAUSE

  • Irregularly worn brake disc (wear lip)

EFFECT

  • Squeal and brake pedal pulsation
  • Premature pad wear

SOLUTION

  • Replace rotors and pads

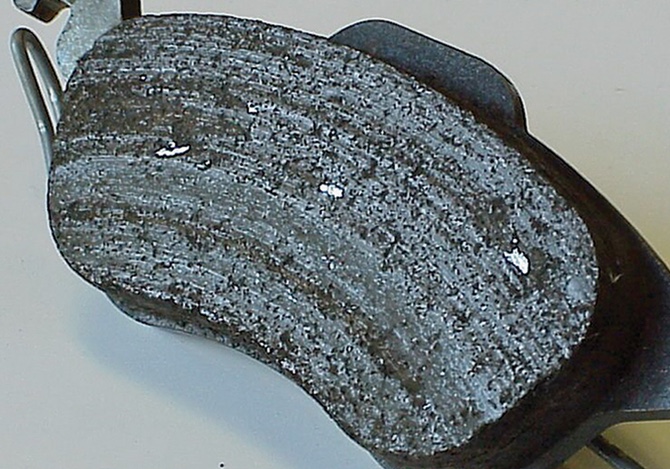

METAL RESIDUE



APPEARANCE

  • Metal residue on friction surface

CAUSE

  • Water leakage, “quenching” of the rotor causes rotor fragments to break away, transferring them to the friction material
  • Particularly noticeable if heavy braking on poorly bedded rotors

EFFECT

  • Has no detrimental effect on braking performance
  • May cause rotor damage or brake squeal

SOLUTION

  • In extreme instances, replace rotors and pads

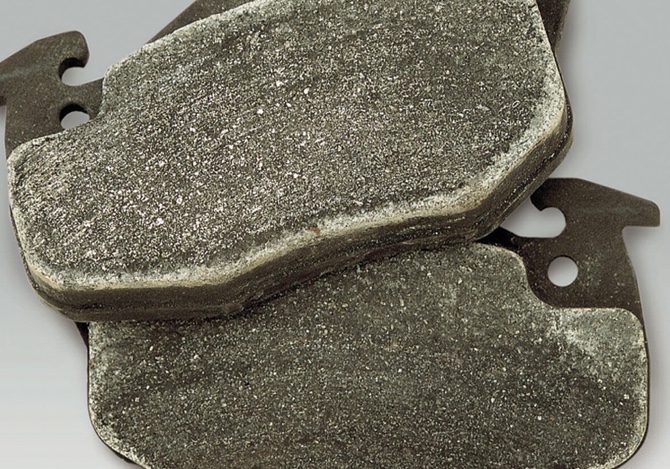

ASHING


APPEARANCE

  • Partially charred friction material (whitish outer edges)

CAUSE

  • Prolonged excessive pad temperature due to intensive use or dragging

EFFECT

  • Reduction in initial braking efficiency
  • Excessive material deterioration
  • Material becomes brittle, chips and cracks
  • Excessive abnormal wear

SOLUTION

  • Providing the damage is not excessive, pads can be used and will be effective under normal use




GLAZING

APPEARANCE

  • Pad friction surface “glazed”

CAUSE

  • High intermittent pad temperature for short durations

EFFECT

  • Temporary reduction in braking performance

SOLUTION

  • Can be remedied by “normal” use

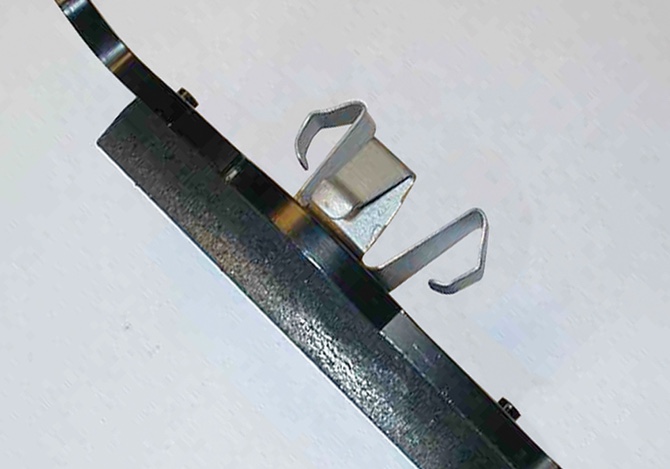

BACKPLATE DAMAGE

APPEARANCE

  • Damaged backplate

CAUSE

  • Incorrect assembly
  • Excessive force used during installation

EFFECT

  • Reduced braking efficiency, irregular, wear, noise and judder
  • In extreme instances, products will not fit in the caliper

SOLUTION

  • Replace Pads

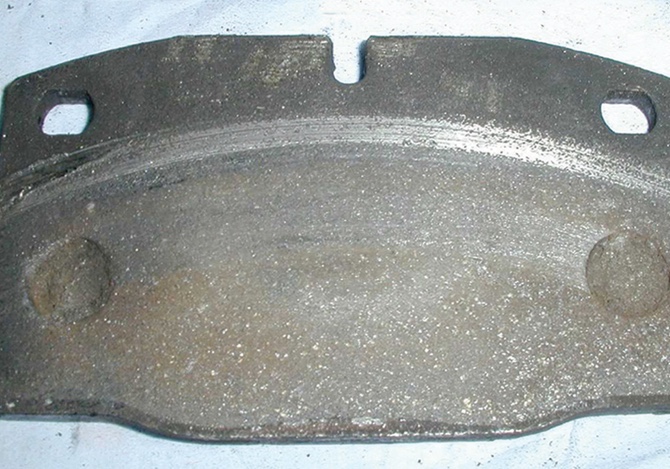

WORN OUT PADS

APPEARANCE

  • Friction material completely worn out

CAUSE

  • No periodic control of pad wear

EFFECT

  • Vehicle may pull to one side
  • Damage to rotor
  • High squeal and noise

SOLUTION

  • Replace pads

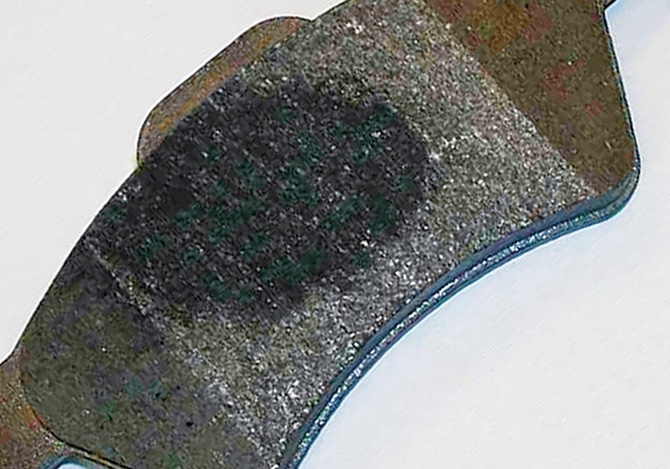

SURFACE CONTAMINATION

APPEARANCE

  • Friction material contaminated with oil, grease or brake fluid

CAUSE

  • Spillage during maintenance

EFFECT

  • Vehicle may pull to one side
  • Reduction in braking performance

SOLUTION

  • Replace pads

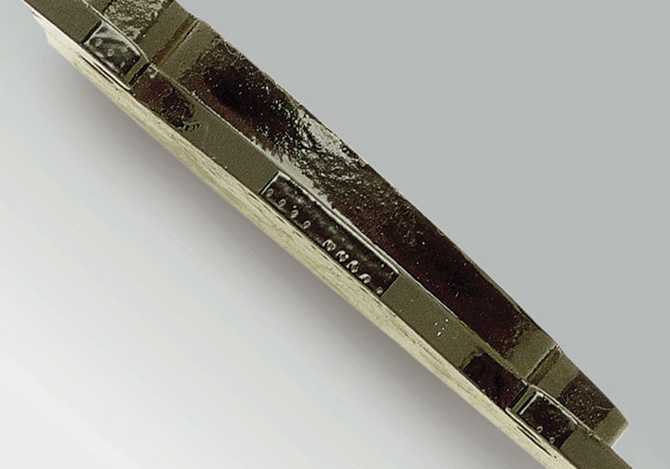

TAPERED PADS

APPEARANCE

  • Uneven wear, tapered pads

CAUSE

  • Distorted caliper
  • Caliper slides sticking
  • Piston sticking
  • Excessive caliper clearance

EFFECT

  • Premature pad wear
  • Uneven braking pressure
  • Noise and squeal

SOLUTION

  • Replace pads
  • Service or replace calipers
  • Replace with new loaded calipers

Think it may be time to replace your brakes? Be sure to see a professional to determine when to change brake pads and components.
